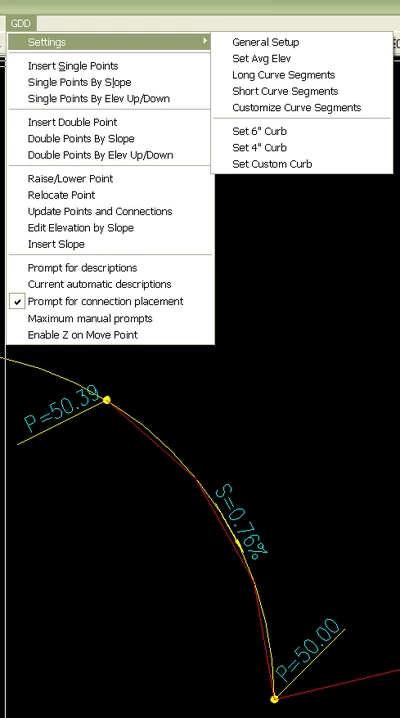

Grading and Drainage Designer is a 3D site design application that was created by David Wilkins and released as Free Software under the terms of the GPL on April 23, 2008. It works like the AutoCAD Civil 3D Feature Lines tools to allow site grading without a calculator.

InstructionsEdit

To use GDD, put the code on this page and the following block and menu files in the Support Files Search Path. Then load the GDD partial menu. Or download a single zip file at the HawsEDC web site.

Source codeEdit

;;; AutoCAD Wiki AutoLISP code header.
;;;
;;; Copy this code to a file on your computer.
;;; Start highlighting OUTSIDE the code boxes and use the mouse or keyboard to
;;; highlight all the code.
;;; If you select too much, simply delete any extra from your destination file.
;;; In Windows you may want to start below the code and use [Shift]+[Ctrl]+[Home]
;;; key combination to highlight all the way to the top of the article,
;;; then still holding the [Shift] key, use the arrow keys to shrink the top of
;;; the selection down to the beginning of the code.  Then copy and paste.
;;; This program is free software: you can redistribute it and/or modify
;;; it under the terms of the GNU General Public License as published by
;;; the Free Software Foundation, either version 3 of the License, or
;;; (at your option) any later version.
;;;
;;; This program is distributed in the hope that it will be useful,
;;; but WITHOUT ANY WARRANTY; without even the implied warranty of
;;; MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
;;; GNU General Public License for more details.
;;;
;;; The working version of this software is located at the AutoCAD Wiki.
;;; Please AutoCAD:Be_bold in adding clarifying comments and improvements at
;;; http://autocad.wikia.com/wiki/Grading_and_Drainage_Designer_(AutoLISP_application)
;|
GDD Grading and Drainage Designer

Defaults are in the GDD-GETVAR function for now.

Inserts a connecting slope (or rise) between two point blocks.
Adjusts elevation points and connecting slopes or rises.

GDDPOINT.DWG is an attributed block.  It represents an elevation point.
It has the following attributes:
  -ELEV is the current elevation of the point in display format.
   The Z coordinate is the true current elevation.
  -PREFELEV is the preferred elevation for the point.
   During automatic adjustments, this elevation is
   used in the absence of other constraints or as
   a starting point.
   Preferred connection values have priority over
   preferred elevation values.
  -MINELEV is the minimum allowable elevation for the point.
   During automatic adjustments, this constraint is not violated.
   A report is given if the adjustment has to stop because of this constraint.
  -MAXELEV is the maximum allowable elevation for the point.
   During automatic adjustments, this constraint is not violated.
   A report is given if the adjustment has to stop because of this constraint.

GDDCONNECT.DWG is an attributed block.  It represents a connection between two points.
It has the following attributes:
  -VALUE is the current value value of the connection.
  -TYPE is the connection type, either SLOPE or RISE.
  -PREFVAL is the preferred value for the connection.
   During automatic adjustments, this value is
   used unless user gives permission to adjust it.
   Preferred connection values have priority over
   preferred elevation values.
  -MINVAL is the minimum allowable value for the connection.
   During automatic adjustments, this constraint is not violated.
   A report is given if the adjustment has to stop because of this constraint.
  -MAXVAL is the maximum allowable value for the connection.
   During automatic adjustments, this constraint is not violated.
   A report is given if the adjustment has to stop because of this constraint.
  -PREFIX
  -SUFFIX
  -FACTOR
  -X1
  -Y1
  -Z1
  -HANDLE1
  -X2
  -Y2
  -Z2
  -HANDLE2
  -BULGE is the ratio of
   the distance from the midpoint of an arc connector to the midpoint of the chord
   to
   half the chord length.
   delta = 4 * atan(bulge)
   radius = chord length / sin(delta / 2) / 2


Data structures:

  Entities are passed among functions as entity names
  Points connected are stored in connectors as handles

             <= Counter-clockwise is mathematically positive
        ooo
     o       PNT3
   o        /| o
  o        / |  PNT2
 o        /  |   o
 o       +   |-b-o
  o       \  C  o
   o       \ | o
     o      \PNT1
        ooo
         <= Clockwise is mathematically negative

  Bulge is 2B/C where C is the arc chord.  The arc shown has a positive (rightward) bulge).
  Bulge also = tan (delta / 4)
  Bulge is 0 for a line, 1 for a 180 degree arc, and approaches infinity as delta approaches 360.

Assumptions:
  Current angular units are degrees (see GDD-INSBLK function).

|;

;;;  Menu state settings
(DEFUN
   GDD-MENUINIT	()
  ;;Put a check mark on "Prompt for connector placement" menu item if needed.
  (COND
    ((/= (GDD-GETVAR "CONNECTORUSERPLACE") "0")
     (MENUCMD "GGDD.ID_GDDCPTOG=!.")
    )
  )
  ;;Put a check mark on the "Prompt for descriptions" menu item if needed.
  (COND
    ((= (GDD-GETVAR "CONNECTORUSERPLACE") "On")
     (MENUCMD "GGDD.ID_GDDPDTOG=!.")
    )
  )
  ;;Remove check mark on enable z coordinate on move point since that's our default on load.
  (COND
    ((= (GDD-GETVAR "CONNECTORUSERPLACE") "On")
     (MENUCMD "GGDD.ID_GDDPMZTOG=!.")
    )
  )
)


;;;  Command functions ----------------------------------------------------------
;;;  C:GDDMENU Reloads GDD.MNU using the menuload command
(DEFUN C:GDDMENU () (COMMAND "._menuunload" "gdd" "._menuload" "gdd.mnu"))

;;;  C:GDD-AVERAGEELEVATION prompts for average project elevation
(DEFUN C:GDD-AVERAGEELEVATION () (GDD-SETUP "Average"))

;;;  C:GDD-DISPLAYDIGITS prompts for number of display digits
(DEFUN C:GDD-DISPLAYDIGITS () (GDD-SETUP "Digits"))

;;;  C:GDD-CURVEERROR prompts for the allowed curve segmenting error
(DEFUN C:GDD-CURVEERROR () (GDD-SETUP "Error"))

;;;  C:GDD-CURBHEIGHT prompts for the current curb height
(DEFUN C:GDD-CURBHEIGHT () (GDD-SETUP "Curb"))

;;;  C:GDD-PLACEMENTPROMPTMAX prompts for the maximum number of connectors to individually manually place.
(DEFUN C:GDD-PLACEMENTPROMPTMAX () (GDD-SETUP "Connector") (PRINC))

;;;  C:GDD-PLACEMENTPROMPTTOGGLE toggles whether connector placement is manual or always automatic
(DEFUN
   C:GDD-PLACEMENTPROMPTTOGGLE ()
  (COND
    ((= (GDD-GETVAR "CONNECTORUSERPLACE") "0")
     (GDD-SETVAR "CONNECTORUSERPLACE" (GDD-GETVAR "CONNECTORUSERPLACEMAX"))
     (MENUCMD "GGDD.ID_GDDCPTOG=!.")
    )
    (T (GDD-SETVAR "CONNECTORUSERPLACE" "0") (MENUCMD "GGDD.ID_GDDCPTOG="))
  )
  (PRINC)
)

;;;  C:GDD-DESCRIPTIONS prompts for current point descriptions
(DEFUN
   C:GDD-DESCRIPTIONS ()
  (GDD-GETDESCRIPTION "1")
  (GDD-GETDESCRIPTION "2")
  (PRINC)
)

;;;  C:GDD-DESCRIPTIONPROMPTTOGGLE toggles whether descriptions are requested on point insertion
(DEFUN
   C:GDD-DESCRIPTIONPROMPTTOGGLE ()
  (COND
    ((= (GDD-GETVAR "POINTDESCRIPTIONPROMPT") "On")
     (GDD-SETVAR "POINTDESCRIPTIONPROMPT" "Off")
     (MENUCMD "GGDD.ID_GDDPDTOG=")
    )
    (T
     (GDD-SETVAR "POINTDESCRIPTIONPROMPT" "On")
     (MENUCMD "GGDD.ID_GDDPDTOG=!.")
    )
  )
  (PRINC)
)

;;;  C:GDD-ZMOVETOGGLE toggles whether Z coordinate is heeded when moving points
(DEFUN
   C:GDD-ZMOVETOGGLE ()
  (COND
    ((= (GDD-GETVAR "POINTMOVEZ") "Off")
     (GDD-SETVAR "POINTMOVEZ" "On")
     (MENUCMD "GGDD.ID_GDDPMZTOG=!.")
    )
    (T (GDD-SETVAR "POINTMOVEZ" "Off") (MENUCMD "GGDD.ID_GDDPMZTOG="))
  )
  (PRINC)
)

;;;  C:GDD-INSERTPOINTSINGLE
(DEFUN C:RANDOMSPOT () (C:GDD-INSERTPOINTSINGLE))
(DEFUN C:IP () (C:GDD-INSERTPOINTSINGLE))
(DEFUN C:IPS () (C:GDD-INSERTPOINTSINGLE))
(DEFUN
   C:GDD-INSERTPOINTSINGLE (/ ANG1 DESC INPUT1 INPUTDEST INPUTREF)
  ;;Get elevation or reference point from user.
  (SETQ INPUTREF (GDD-GETREFERENCE "point"))
  ;;Prompt for point description.  Get default from and save as description id "1".
  (SETQ
    DESC
     (IF (= (GDD-GETVAR "POINTDESCRIPTIONPROMPT") "On")
       (GDD-GETDESCRIPTION "1")
       (GDD-GETVAR "DESCRIPTION1")
     )
  )
  ;;Get insertion point and connector arc second point if any.
  (SETQ INPUTDEST (GDD-GETDESTINATION INPUTREF))
  ;;Insert point.
  (GDD-INSERTPOINT INPUTREF INPUTDEST (LIST (LIST DESC 0.0 "gddpoint-single")))
  (PRINC)
)

;;;  C:GDD-INSERTPOINTDOUBLE
(DEFUN C:IPD () (C:GDD-INSERTPOINTDOUBLE))
(DEFUN
   C:GDD-INSERTPOINTDOUBLE (/ ANG1 DESC1 DESC2 INPUT1 INPUTDEST INPUTREF)
  ;;Get elevation or reference point from user.
  (SETQ INPUTREF (GDD-GETREFERENCE "point"))
  ;;Prompt for point description.  Get default from and save as description id "1".
  (SETQ
    DESC1
     (IF (= (GDD-GETVAR "POINTDESCRIPTIONPROMPT") "On")
       (GDD-GETDESCRIPTION "1")
       (GDD-GETVAR "DESCRIPTION1")
     )
  )
  ;;Prompt for point description.  Get default from and save as description id "2".
  (SETQ
    DESC2
     (IF (= (GDD-GETVAR "POINTDESCRIPTIONPROMPT") "On")
       (GDD-GETDESCRIPTION "2")
       (GDD-GETVAR "DESCRIPTION2")
     )
  )
  ;;Get insertion point and connector arc second point if any.
  (SETQ INPUTDEST (GDD-GETDESTINATION INPUTREF))
  ;;Insert points (upper and lower).
  (GDD-INSERTPOINT
    INPUTREF
    INPUTDEST
    (LIST
      (LIST DESC1 0.0 "gddpoint-lower")
      (LIST
	DESC2
	;;ATOF = ALPHABET TO FLOAT (STRING TO REAL)
	(ATOF (GDD-GETVAR "CURBHEIGHT"))
	"gddpoint-upper"
      )
    )
  )
  (PRINC)
)

;;;  C:GDD-RAISEPOINTS
(DEFUN C:RP () (C:GDD-RAISEPOINTS))
(DEFUN
   C:GDD-RAISEPOINTS (/ SSPOINTS INCREMENT)
  (SETQ
    SSPOINTS
     (SSGET '((0 . "INSERT") (2 . "GDDPOINT*")))
    INCREMENT
     (GETREAL "\nAmount to raise each point:  ")
  )
  (GDD-UPDATE SSPOINTS (LIST 0.0 0.0 INCREMENT))
)

;;;  C:GDD-MOVEPOINTS
(DEFUN C:MP () (C:GDD-MOVEPOINTS))
(DEFUN
   C:GDD-MOVEPOINTS (/ DISPLACEMENT SSPOINTS PNT1 PNT2)
  (SETQ
    SSPOINTS
     (SSGET '((0 . "INSERT") (2 . "GDDPOINT*")))
    PNT1
     (GETPOINT "\nSpecify base point or [Displacement] <Displacement>: ")
  )
  (IF (NOT PNT1)
    (SETQ PNT2 (GETPOINT "\nSpecify displacement <0.00, 0.00, 0.00>: "))
    (SETQ
      PNT2
       (GETPOINT
	 PNT1
	 "\nSpecify second point or <use first point as displacement>: "
       )
    )
  )
  (SETQ
    DISPLACEMENT
     (IF (NOT PNT2)
       PNT1
       (IF (NOT PNT1)
	 PNT2
	 (LIST
	   (- (CAR PNT2) (CAR PNT1))
	   (- (CADR PNT2) (CADR PNT1))
	   (- (CADDR PNT2) (CADDR PNT1))
	 )
       )
     )
  )
  (IF (= (GDD-GETVAR "POINTMOVEZ") "Off")
    (SETQ DISPLACEMENT (LIST (CAR DISPLACEMENT) (CADR DISPLACEMENT) 0.0))
  )
  (GDD-UPDATE SSPOINTS DISPLACEMENT)
)

;;;  C:GDD-INSERTCONNECTOR
(DEFUN C:IC () (C:GDD-INSERTCONNECTOR))
(DEFUN
   C:GDD-INSERTCONNECTOR (/ CTYPE ENPNT1 ENPNT3 ARCPNT2 PNT2D1 PNT2D3)
  (SETQ
    ENPNT1
     (CAR (ENTSEL "\nSelect 3d point object: "))
    CTYPE "SLOPE"
  )
  (WHILE (NOT ENPNT3)
    (INITGET "Arc Rise")
    (SETQ
      ENPNT3
       (ENTSEL "\nSelect second 3d point object or [Arc/Rise] <Arc>: ")
    )
    (COND
      ((OR (NOT ENPNT3) (= ENPNT3 "Arc"))
       (SETQ
	 ARCPNT2
	  (GETPOINT "\nSelect second point on arc between points: ")
	 ENPNT3	NIL
       )
      )
      ((= ENPNT3 "Rise")
       (SETQ
	 CTYPE "RISE"
	 ENPNT3	NIL
       )
       (PROMPT "\nConnector type = RISE")
      )
      (T (SETQ ENPNT3 (CAR ENPNT3)))
    )
  )
  (GDD-INSERTCONNECTOR
    CTYPE
    ENPNT1
    ENPNT3
    (IF	ARCPNT2
      (WIKI-3PTTOBULGE
	(CDR (ASSOC 10 (ENTGET ENPNT1)))
	ARCPNT2
	(CDR (ASSOC 10 (ENTGET ENPNT3)))
      )
      0
    )
    (IF	(/= (GDD-GETVAR "CONNECTORUSERPLACE") "0")
      T
      NIL
    )
  )
  (PRINC)
)

;;;  C:GDD-EDITSLOPE
(DEFUN
   C:EDITSLOPE (/ ADJUSTMENT BULGE ENCONNECTOR ENPNT1 ENPNT3 ENPOINT
		HOLDINGLOWESTPOINT MOVINGPNT1 MOVINGPNT3 NEWSLOPE PNT1HIGHEST
		PNT3D1 PNT3D3 READLIST SSPOINTS
	       )
  ;;Get the new slope to use
  (SETQ
    NEWSLOPE
     (GDD-SETFROMINPUT
       'GETREAL
       'REAL
       "New slope to set (negative to reverse direction)"
       "OBJECTSLOPE"
     )
  )
  ;;In a loop, prompt repeatedly for a connector to change, then the points to adjust.
  (WHILE (SETQ ENCONNECTOR (CAR (ENTSEL "\nSelect slope to edit: ")))
    (PROMPT "\nSelect points to adjust: ")
    (SETQ SSPOINTS (SSGET '((0 . "INSERT") (2 . "GDDPOINT*"))))
    ;;Read about the connector.
    (SETQ
      READLIST
       (GDD-READBLOCK
	 ENCONNECTOR
	 '(("HANDLEPOINT1") ("HANDLEPOINT2") ("BULGE"))
       )
      ENPNT1
       (HANDENT (CDR (ASSOC "HANDLEPOINT1" READLIST)))
      ENPNT3
       (HANDENT (CDR (ASSOC "HANDLEPOINT2" READLIST)))
      BULGE
       (ATOF (CDR (ASSOC "BULGE" READLIST)))
      MOVINGPNT1
       (SSMEMB ENPNT1 SSPOINTS)
      MOVINGPNT3
       (SSMEMB ENPNT3 SSPOINTS)
    )
    ;;Check that user didn't select to adjust both ends of slope.  (How embarrasing!)
    (WHILE (AND MOVINGPNT1 MOVINGPNT3)
      (ALERT
	(PRINC
	  "\nCan't adjust both ends of a slope at once.\n\nPlease select an end to hold."
	)
      )
      (IF (SETQ ENPOINT (CAR (ENTSEL)))
	(SSDEL ENPOINT SSPOINTS)
      )
    )
    ;;Calculate the adjustment required for the slope change.
    ;;Adjustment if lowest point is held = length * (newslope - oldslope)
    ;;Adjustment if highest point is held = -1 * the above
    (SETQ
      PNT3D1
       (CDR (ASSOC 10 (ENTGET ENPNT1)))
      PNT3D3
       (CDR (ASSOC 10 (ENTGET ENPNT3)))
      PNT1HIGHEST
       (> (CADDR PNT3D1) (CADDR PNT3D3))
      HOLDINGLOWESTPOINT
       (IF PNT1HIGHEST
	 MOVINGPNT1
	 MOVINGPNT3
       )
      ADJUSTMENT
       (* (IF HOLDINGLOWESTPOINT
	    1
	    -1
	  )
	  (GDD-SEGMENT-LENGTH PNT3D1 PNT3D3 BULGE)
	  (- (ATOF (GDD-GETVAR "OBJECTSLOPE"))
	     (ABS (GDD-SLOPE PNT3D1 PNT3D3 BULGE))
	  )
       )
    )
    (GDD-UPDATE SSPOINTS (LIST 0.0 0.0 ADJUSTMENT))
  )
)


;;;  GDD-UPDATE
(DEFUN C:UP () (C:GDD-UPDATE))
(DEFUN
   C:GDD-UPDATE	()
  (GDD-UPDATE
    (SSGET '((0 . "INSERT") (2 . "GDDPOINT*,GDDCONNECT")))
    '(0.0 0.0 0.0)
  )
)
;;;----------------------------------------------------------------------------
;;;  End command functions------------------------------------------------------
;;;----------------------------------------------------------------------------
;;;  Point block functions ----------------------------------------------------------
;;;----------------------------------------------------------------------------

;;;  GDD-INSERTPOINT
(DEFUN
   GDD-INSERTPOINT (INPUTREF INPUTDEST POINTLIST / ANG1	ARCPNT2	BLOCKNAME BULGE
		    DESC DISPLAYELEV FULLELEV PNT2D1 PNT2D3 PNT3D1 VERTADJUST
		   )
;;;
;;;  ARGUMENTS:
;;;INPUTREF=XYZ POINT OR AN OBJECT
;;;INPUTDEST=A 2 ELEMENT LIST CONTAINING 2ND ARC POINT AND INSERTION POINT
;;;POINTLIST='(( DESC1 VERTADJUST1 BLOCKNAME1)...(DESCI VERTADJUSTI BLOCKNAMEI))
;;;    THE FIRST ELEMENT IS THE BLOCK THAT THE CONNECTOR WILL TIE TO
;;;*** DOW NOTE TO SELF - ITH ONE IS A COUNTER ***
;;;  Inserts a point block at each point in POINTLIST
;;;  If getting elevation from a reference object, draws 3d line work.
;;;  If also slope isn't zero, adds a slope label and arrow block.
  ;;If inputref is an object, get full elevation from its z coordinate.
  ;;Otherwise from input.
  (COND
    ((= (TYPE INPUTREF) 'ENAME)
     (SETQ PNT3D1 (CDR (ASSOC 10 (ENTGET INPUTREF))))
     ;; If inputdest contains two lists,
     ;; the first one is the second point of a connector arc,
     ;; and the second one is the destination point,
     (IF (= (TYPE (CAR INPUTDEST)) 'LIST)
       (SETQ
	 ARCPNT2
	  (GDD-FLATTEN (CAR INPUTDEST))
	 PNT2D3
	  (GDD-FLATTEN (CADR INPUTDEST))
       )
       (SETQ PNT2D3 INPUTDEST)
     )
     ;; Calculate the elevation of the destination point
     (SETQ
       PNT2D1
	(GDD-FLATTEN PNT3D1)
       BULGE
	(IF ARCPNT2
	  (WIKI-3PTTOBULGE PNT2D1 ARCPNT2 PNT2D3)
	  0
	)
       FULLELEV
	(+ (CADDR PNT3D1)
	   (ATOF (GDD-GETVAR "OBJECTADD"))
	   (* (ATOF (GDD-GETVAR "OBJECTSLOPE"))
	      (GDD-SEGMENT-LENGTH PNT2D1 PNT2D3 BULGE)
	   )
	)
     )
    )
    (T
     (SETQ
       FULLELEV
	(+ INPUTREF)
       PNT2D3 INPUTDEST
     )
    )
  )
  (SETQ ANG1 (GETANGLE PNT2D3 "\nRotation: "))
;;;STEP THRU EACH POINT
  (FOREACH
     POINTI (REVERSE POINTLIST)
    (SETQ
      DESC
       (CAR POINTI)
      VERTADJUST
       (CADR POINTI)
      BLOCKNAME
       (CADDR POINTI)
      DISPLAYELEV
       (GDD-SHORTELEV (RTOS (+ FULLELEV VERTADJUST) 2))
    )
    (GDD-INSBLK
      BLOCKNAME
      (LIST (CAR PNT2D3) (CADR PNT2D3) (+ FULLELEV VERTADJUST))
      ANG1
      (GDD-GETVAR "LYRPOINT")
      1
    )
    (GDD-WRITEBLOCK
      (ENTLAST)
      (LIST
	(CONS "DESC" DESC)
	(CONS "ELEV" DISPLAYELEV)
	(CONS "PREFELEV" DISPLAYELEV)
	(CONS "MINELEV" DISPLAYELEV)
	(CONS "MAXELEV" DISPLAYELEV)
      )
    )
  )
  (COND
    ((= (TYPE INPUTREF) 'ENAME)
     (GDD-INSERTCONNECTOR
       ;;Type of connector
       (IF (= 0 (ATOF (GDD-GETVAR "OBJECTSLOPE")))
	 "RISE"
	 "SLOPE"
       )
       ;;What to connect to
       INPUTREF
       ;;Entlast is the last point in the reversed list
       (ENTLAST)
       BULGE
       (IF (/= (GDD-GETVAR "CONNECTORUSERPLACE") "0")
	 T
	 NIL
       )
     )
    )
  )
)

;;;  GDD-INSBLK Inserts a given block at a given point
(DEFUN
   GDD-INSBLK (BLNAME INSPNT ROTATION LAYER OPTIONS / BLSCALE)
;;;at dimscale * dimtxt
;;;on layer given
;;;Assumes that the current angular units are degrees.
;;;Options:
;;;1 Add "lt" or "rt" to block name depending on rotation.
  (SETQ BLSCALE (* (GETVAR "dimscale") (GETVAR "dimtxt")))
  (GDD-MAKELAYER LAYER)
  (COMMAND
    "._insert"
    (IF	(= 1 (LOGAND OPTIONS 1))
      (STRCAT
	BLNAME
	(IF (MINUSP (COS ROTATION))
	  "lt"
	  "rt"
	)
      )
      BLNAME
    )
    INSPNT
    BLSCALE
    ""
    (IF	(= ROTATION "P")
      PAUSE
      (/ (* ROTATION 180) PI)
    )
  )
)

;;;  GDD-GETDESCRIPTION
(DEFUN
   GDD-GETDESCRIPTION (IDSTR / INPUTSTR CURRENTDESC)
;;;Gets a point description from user, prompting with current default.
  (GDD-SETFROMINPUT
    'GETSTRING
    'STR
    (STRCAT "Description " IDSTR)
    (STRCAT "DESCRIPTION" IDSTR)
  )
)

;;;  Connector functions ---------------------------------------------------------

;;;  GDD-INSERTCONNECTOR
(DEFUN
   GDD-INSERTCONNECTOR (CTYPE ENPNT1 ENPNT3 BULGE PLACEMENTPROMPT / CENPNT
			EN3DLINE ENARROW ENCONNECT INSPNT PNT2D1 PNT2D3	PNT3D1
			PNT3D3 PNTTEMP SLOPEDIR	SS1 VALUE
		       )
;;;  Inserts a connector of a given type at a given point
;;;  between two given point blocks with a given bulge
;;;  (positive bulge is counterclockwise)
;;;  If the connector is a SLOPE, inserts graphics.
;;;  Places direction arrow
;;;  between block and connector pointing downslope.
;;;  Orients block "right side up"
  (SETQ
    PNT3D1
     (CDR (ASSOC 10 (ENTGET ENPNT1)))
    PNT3D3
     (CDR (ASSOC 10 (ENTGET ENPNT3)))
    PNT2D1
     (GDD-FLATTEN PNT3D1)
    PNT2D3
     (GDD-FLATTEN PNT3D3)
  )
  ;; Add 3d line
  (GDD-MAKELAYER (GDD-GETVAR "LYR3DLINE"))
  (SETQ EN3DLINE (GDD-DRAW3DLINE PNT3D1 PNT3D3 BULGE))
  ;;Add connector block
  (SETQ
    INSPNT
     (GDD-SEGMENT-MIDPOINT PNT2D1 PNT2D3 BULGE)
    CENPNT
     (GDD-SEGMENT-CENTER PNT2D1 PNT2D3 BULGE)
    SLOPEDIR
     (GDD-SLOPEDIR INSPNT PNT3D1 PNT3D3 BULGE)
    VALUE
     (STRCAT
       (GDD-GETVAR "CONNECTPREFIX")
       (RTOS
	 (* (ABS (GDD-SLOPE PNT3D1 PNT3D3 BULGE))
	    (ATOF (GDD-GETVAR "CONNECTFACTOR"))
	 )
	 2
	 (ATOI (GDD-GETVAR "CONNECTPREC"))
       )
       (GDD-GETVAR "CONNECTSUFFIX")
     )
    SS1
     (SSADD)
  )
  (GDD-INSBLK
    "gddconnect"
    INSPNT
    (GDD-RIGHTSIDEUP SLOPEDIR)
    (GDD-GETVAR
      (IF (= CTYPE "SLOPE")
	"LYRCONNECTSLOPE"
	"LYRCONNECTRISE"
      )
    )
    0
  )
  (SETQ SS1 (SSADD (ENTLAST) SS1))
  (GDD-WRITEBLOCK
    (ENTLAST)
    (LIST
      (CONS "TYPE" CTYPE)
      (CONS "VALUE" "")
      (CONS "PREFVAL" VALUE)
      (CONS "MINVAL" VALUE)
      (CONS "MAXVAL" VALUE)
      ;;      (CONS "PREFIX" (GDD-GETVAR "CONNECTPREFIX"))
      ;;      (CONS "SUFFIX" (GDD-GETvAR "CONNECTSUFFIX"))
      ;;      (CONS "FACTOR" (GDD-GETVAR "CONNECTFACTOR"))
      (CONS "HANDLEPOINT1" (CDR (ASSOC 5 (ENTGET ENPNT1))))
      (CONS "HANDLEPOINT2" (CDR (ASSOC 5 (ENTGET ENPNT3))))
      (CONS "HANDLE3DLINE" (CDR (ASSOC 5 (ENTGET EN3DLINE))))
      (CONS "BULGE" (RTOS BULGE 2 16))
      (CONS "CHORD" (RTOS (DISTANCE PNT2D1 PNT2D3) 2 16))
    )
  )
  (SETQ ENCONNECT (ENTLAST))
  ;; If connector type is slope, add graphics to drawing.
  (COND
    ((= CTYPE "SLOPE")
     (GDD-INSBLK "gddarrow" INSPNT SLOPEDIR (GDD-GETVAR "LYRARROW") 0)
     (SETQ ENARROW (ENTLAST))
     (SETQ SS1 (SSADD (ENTLAST) SS1))
     (GDD-WRITEBLOCK
       ENCONNECT
       (LIST
	 (CONS "VALUE" VALUE)
	 (CONS "HANDLEARROW" (CDR (ASSOC 5 (ENTGET ENARROW))))
       )
     )
     (COND
       (PLACEMENTPROMPT
	(SETQ PNTTEMP INSPNT)
	(COND
	  ((/= BULGE 0)
	   ;;(prompt "\nLocation along curve: ")
	   (COMMAND "._rotate" SS1 "" CENPNT "_r" CENPNT INSPNT PAUSE)
	   (SETQ PNTTEMP (CDR (ASSOC 10 (ENTGET (ENTLAST)))))
	  )
	)
	;;(prompt "\nInsertion point: ")
	(COMMAND "._move" SS1 "" PNTTEMP PAUSE)
       )
     )
    )
  )
)


;;;  GDD-UPDATE
(DEFUN
   GDD-UPDATE (SS1 DISPLACEMENT	/ BULGE	CENPNT CTYPE DISPLAYELEV DONE EG EGI
	       ELEV EN EN3DLINE	ENARROW	ENCONNECTOR ENI	ENJ ENPNT1 ENPNT3 ET I
	       INSPNT INSPT NCONNECTORS	OLDVALUE PNT1 PNT2 PNT3D1 PNT3D3
	       SLOPEDIR	SSALLCONNECTORS	VALUE READLIST CHORD NEWBULGE NEWRADIUS
	       OLDBULGE	OLDRADIUS RADIUS
	      )
;;;  1.  Updates the z coordinate of points to match their display elevations plus an increment
;;;  2.  Updates connectors associated with points
;;;  This really should allow the passing of a set of connectors and/or points (for speed)
;;;  It also should only update the points and connectors that need it.
;;;  Points only if elev is different than z coordinate.
;;;  Connectors only if anything changed.
;;;
  (COND
    (SS1
     (COMMAND "._undo" "g")
     ;;1.  Move all the points that need it to their display elevations plus an increment.
     (SETQ
       NCONNECTORS 0
       I -1
     )
     (WHILE (SETQ ENI (SSNAME SS1 (SETQ I (1+ I))))
       ;;If its a point
       (COND
	 ((/= "GDDCONNECT" (STRCASE (CDR (ASSOC 2 (SETQ EGI (ENTGET ENI))))))
	  ;;Get elevation attribute from block
	  (SETQ
	    DISPLAYELEV
	     (CDR (ASSOC "ELEV" (GDD-READBLOCK ENI '(("ELEV")))))
	  )
	  ;;Move the point if needed.
	  (SETQ EGI (ENTGET ENI))
	  (COND
	    ((OR
	       (/=
		 (SETQ ELEV (+ (GDD-FULLELEV DISPLAYELEV) (CADDR DISPLACEMENT)))
		 (CDR (ASSOC 10 EGI))
	       )
	       (/= (CAR DISPLACEMENT) 0)
	       (/= (CADR DISPLACEMENT) 0)
	     )
	     (COMMAND
	       "._MOVE"
	       ENI
	       ""
	       (CDR (ASSOC 10 EGI))
	       (LIST
		 (+ (CADR (ASSOC 10 EGI)) (CAR DISPLACEMENT))
		 (+ (CADDR (ASSOC 10 EGI)) (CADR DISPLACEMENT))
		 ELEV
	       )
	     )
	    )
	  )
	  ;;Edit the display elevation if needed
	  (COND
	    ((/= (CADDR DISPLACEMENT) 0)
	     (SETQ DISPLAYELEV (GDD-SHORTELEV (RTOS ELEV 2)))
	     (GDD-WRITEBLOCK
	       ENI
	       (LIST
		 (CONS "ELEV" DISPLAYELEV)
		 (CONS "PREFELEV" DISPLAYELEV)
		 (CONS "MINELEV" DISPLAYELEV)
		 (CONS "MAXELEV" DISPLAYELEV)
	       )
	     )
	    )
	  )
	 )
	 ;;If it isn't a point, count it as a connector.
	 (T (SETQ NCONNECTORS (1+ NCONNECTORS)))
       )
     )
     ;;2.  Check each connector in the drawing to see if it refers to a point in SS1.
     (SETQ
       SSALLCONNECTORS
	(SSGET
	  "X"
	  (LIST (CONS 0 "INSERT") (CONS 2 "GDDCONNECT"))
	)
       I -1
     )
     (WHILE
       (AND SSALLCONNECTORS (SETQ ENI (SSNAME SSALLCONNECTORS (SETQ I (1+ I)))))
	;;Get its associated points
	;;By stepping though attributes in connector block.
	(SETQ
	  ENJ ENI
	  ENPNT1 NIL
	  ENPNT3 NIL
	  READLIST
	   (GDD-READBLOCK ENI '(("HANDLEPOINT1") ("HANDLEPOINT2")))
	  ENPNT1
	   (HANDENT (CDR (ASSOC "HANDLEPOINT1" READLIST)))
	  ENPNT3
	   (HANDENT (CDR (ASSOC "HANDLEPOINT2" READLIST)))
	)
	;;If either of its associated points is in the SS1 update set, add the connector to the SS1 set.
	(COND
	  ((OR (AND ENPNT1 (SSMEMB ENPNT1 SS1)) (AND ENPNT3 (SSMEMB ENPNT3 SS1)))
	   (SSADD ENI SS1)
	   (SETQ NCONNECTORS (1+ NCONNECTORS))
	  )
	)
     )
     ;;3.  Update connectors
     (SETQ I -1)
     (WHILE (SETQ ENCONNECTOR (SSNAME SS1 (SETQ I (1+ I))))
       ;;If its a connector
       (COND
	 ((= "GDDCONNECT"
	     (STRCASE (CDR (ASSOC 2 (SETQ EGI (ENTGET ENCONNECTOR)))))
	  )
	  ;;Get the values needed from each connector block.
	  (SETQ
	    READLIST
	     (GDD-READBLOCK
	       ENCONNECTOR
	       '(("VALUE")
		 ("HANDLEPOINT1")
		 ("HANDLEPOINT2")
		 ("HANDLE3DLINE")
		 ("HANDLEARROW")
		 ("BULGE")
		 ("CHORD")
		 ("TYPE")
		)
	     )
	    OLDVALUE
	     (HANDENT (CDR (ASSOC "VALUE" READLIST)))
	    ENPNT1
	     (HANDENT (CDR (ASSOC "HANDLEPOINT1" READLIST)))
	    ENPNT3
	     (HANDENT (CDR (ASSOC "HANDLEPOINT2" READLIST)))
	    EN3DLINE
	     (HANDENT (CDR (ASSOC "HANDLE3DLINE" READLIST)))
	    ENARROW
	     (CDR (ASSOC "HANDLEARROW" READLIST))
	    ENARROW
	     (IF ENARROW
	       (HANDENT ENARROW)
	     )
	    BULGE
	     (ATOF (CDR (ASSOC "BULGE" READLIST)))
	    CHORD
	     (ATOF (CDR (ASSOC "CHORD" READLIST)))
	    CTYPE
	     (CDR (ASSOC "TYPE" READLIST))
	  )
	  ;;If the two associated points exist, update the connector.
	  (COND
	    ((AND
	       (SETQ PNT3D1 (CDR (ASSOC 10 (ENTGET ENPNT1))))
	       (SETQ PNT3D3 (CDR (ASSOC 10 (ENTGET ENPNT3))))
	     )
	     ;;Get the current locations of the points it connects and do calculations.
	     (SETQ
	       VALUE
		(IF (= CTYPE "SLOPE")
		  (STRCAT
		    (GDD-GETVAR "CONNECTPREFIX")
		    (RTOS
		      (* (ABS (GDD-SLOPE PNT3D1 PNT3D3 BULGE))
			 (ATOF (GDD-GETVAR "CONNECTFACTOR"))
		      )
		      2
		      (ATOI (GDD-GETVAR "CONNECTPREC"))
		    )
		    (GDD-GETVAR "CONNECTSUFFIX")
		  )
		  (RTOS (GDD-RISE PNT3D1 PNT3D3) 2 3)
		)
	       RADIUS
		(GDD-SEGMENT-RADIUS
		  '(0.0 0.0 0.0)
		  (LIST 0.0 CHORD 0.0)
		  BULGE
		)
	       BULGE
		(* (IF (MINUSP BULGE)
		     -1
		     1
		   )
		   (GDD-RCTOBULGE
		     RADIUS
		     (DISTANCE (GDD-FLATTEN PNT3D1) (GDD-FLATTEN PNT3D3))
		   )
		)
	       INSPNT
		(GDD-FLATTEN (GDD-SEGMENT-MIDPOINT PNT3D1 PNT3D3 BULGE))
	       CENPNT
		(GDD-FLATTEN (GDD-SEGMENT-CENTER PNT3D1 PNT3D3 BULGE))
	       SLOPEDIR
		(GDD-SLOPEDIR INSPNT PNT3D1 PNT3D3 BULGE)
	     )
	     ;;If anything has changed, update the connector
	     (COND
	       ((OR (/= VALUE OLDVALUE) (/= INSPT (CDR (ASSOC 10 EGI))))
		;;Delete 3d line
		(ENTDEL EN3DLINE)
		;; If connector type is slope, delete arrow.
		(COND ((= CTYPE "SLOPE") (ENTDEL ENARROW)))
		;;Delete connector
		(ENTDEL ENCONNECTOR)
		;;Insert new connector
		(GDD-INSERTCONNECTOR
		  ;;Type of connector
		  CTYPE
		  ;;What to connect to
		  ENPNT1
		  ;;Entlast is the last point in the reversed list
		  ENPNT3
		  BULGE
		  (IF (> NCONNECTORS (ATOI (GDD-GETVAR "CONNECTORUSERPLACE")))
		    NIL
		    T
		  )
		)
	       )
	     )
	    )
	    ;;Otherwise alert about the error
	    (T
	     (REDRAW ENCONNECTOR 3)
	     (ALERT
	       (PRINC
		 (STRCAT
		   "The highlighted connector is missing an endpoint.\n\nCan't update it.  Please note before continuing."
		 )
	       )
	     )
	     (REDRAW ENCONNECTOR 4)
	    )
	  )
	 )
       )
     )
     (COMMAND "._undo" "end" "._select" SS1 "")
    )
  )
  (PRINC)
)

;;;  GDD-SLOPE Returns slope between two 3d coordinate point lists
(DEFUN
   GDD-SLOPE (COORDS1 COORDS2 BULGE /)
  (/ (GDD-RISE COORDS1 COORDS2) (GDD-SEGMENT-LENGTH COORDS1 COORDS2 BULGE))
)

;;;  GDD-RISE Returns rise between two 3d coordinate points
(DEFUN GDD-RISE (COORDS1 COORDS2 /) (- (CADDR COORDS2) (CADDR COORDS1)))
;;;----------------------------------------------------------------------------
;;;  Geometry functions---------------------------------------------------------
;;;----------------------------------------------------------------------------

;;;  GDD-FLATTEN
(DEFUN
   GDD-FLATTEN (PNT / EG)
;;;Returns flattened coordinates of a 3d point
  ;;Get the entity's DXF list.
  (LIST (CAR PNT) (CADR PNT) 0.0)
)

;;;  Generic 2D segment arc property functions based on 2dPNT1, 2dPNT2, and bulge

;;;  GDD-SEGMENT-CENTER
(DEFUN
   GDD-SEGMENT-CENTER (2DPNT1 2DPNT2 BULGE /)
  ;;Returns the center point of a segment.
  ;;Returns nil if bulge=0
  (COND
    ((= BULGE 0) NIL)
    (T
     (SETQ
       ;;Make sure points are truly 2d
       2DPNT1
	(GDD-FLATTEN 2DPNT1)
       2DPNT2
	(GDD-FLATTEN 2DPNT2)
     )
     (POLAR
       2DPNT1
       ;;Angle from chord to center is (pi - delta)/2
       ;;And delta is 4 * atan(bulge)
       (+ (ANGLE 2DPNT1 2DPNT2) (/ (- PI (* 4 (ATAN BULGE))) 2.0))
       ;;Radius is half the chord over sin (delta/2)
       ;;Delta is 4*atan(bulge)
       (/ (DISTANCE 2DPNT1 2DPNT2) 2.0 (SIN (* 2 (ATAN BULGE))))
     )
    )
  )
)

;;;  GDD-SEGMENT-MIDPOINT
(DEFUN
   GDD-SEGMENT-MIDPOINT	(2DPNT1 2DPNT2 BULGE /)
  ;;Returns the midpoint of a connector.
  (POLAR
    2DPNT1
    ;;Bulge is the bulged distance over half the chord,
    ;;which happens to be the tan of the angle we need.
    (- (ANGLE 2DPNT1 2DPNT2) (ATAN BULGE))
    ;;Use pythagorean theorem to get hypotenuse distance
    ;;based on chord and bulge.
    (* (/ (DISTANCE 2DPNT1 2DPNT2) 2.0) (SQRT (+ 1 (EXPT BULGE 2))))
  )
)

;;;  GDD-SEGMENT-RADIUS
(DEFUN
   GDD-SEGMENT-RADIUS (2DPNT1 2DPNT2 BULGE / DELTA DOVER2)
;;;  Returns nil if bulge = 0
;;;  Always returns a positive radius.
  (COND
    ((/= 0 BULGE)
     (SETQ
       ;;Make sure points are truly 2d
       2DPNT1
	(GDD-FLATTEN 2DPNT1)
       2DPNT2
	(GDD-FLATTEN 2DPNT2)
       DOVER2
	(ABS (* 2 (ATAN BULGE)))
       DELTA
	(* 2 DOVER2)
     )
     (/ (DISTANCE 2DPNT1 2DPNT2) 2.0 (SIN DOVER2))
    )
    (T NIL)
  )
)

;;;  GDD-SEGMENT-LENGTH
(DEFUN
   GDD-SEGMENT-LENGTH
;;;  Returns curve or straight length of a segment.
		      (2DPNT1 2DPNT2 BULGE / D DELTA DOVER2 L R)
  (SETQ
    ;;Make sure points are truly 2d
    2DPNT1
     (GDD-FLATTEN 2DPNT1)
    2DPNT2
     (GDD-FLATTEN 2DPNT2)
    D (/ (DISTANCE 2DPNT1 2DPNT2) 2)
  ) ;_ end of setq
  (COND
    ((/= 0 BULGE)
     (SETQ
       DOVER2
	(ABS (* 2 (ATAN BULGE)))
       DELTA
	(* 2 DOVER2)
       R (/ D (SIN DOVER2))
     ) ;_ end of setq
     (* DELTA R)
    )
    (T (* D 2))
  ) ;_ end of cond
)

;;;  GDD-SEGMENT-DELTA
(DEFUN GDD-SEGMENT-DELTA (2DPNT1 2DPNT2 BULGE) (GDD-BULGE-TO-DELTA BULGE))
(DEFUN
   GDD-BULGE-TO-DELTA (BULGE / DOVER2)
;;;  Returns nil if bulge = 0
  (COND
    ((/= 0 BULGE)
     (SETQ DOVER2 (ABS (* 2 (ATAN BULGE))))
     (*	2
	DOVER2
	(IF (MINUSP BULGE)
	  -1
	  1
	)
     )
    )
    (T NIL)
  )
)

;;;  GDD-SEGMENT-CHORD
(DEFUN
   GDD-SEGMENT-CHORD
;;;  Returns CHORD of a segment or nil if bulge = 0
		     (2DPNT1 2DPNT2 BULGE / D DELTA DOVER2 L R)
  (SETQ
    ;;Make sure points are truly 2d
    2DPNT1
     (GDD-FLATTEN 2DPNT1)
    2DPNT2
     (GDD-FLATTEN 2DPNT2)
  ) ;_ end of setq
  (COND
    ((/= 0 BULGE) (DISTANCE 2DPNT1 2DPNT2))
    (T NIL)
  ) ;_ end of cond
)

;;;  GDD-RCT0BULGE
(DEFUN
   GDD-RCTOBULGE (RADIUS CHORD)
;;;  Converts radius and chord to bulge.
;;;  Returns the bulge of an arc with the given radius and chord..
;;;  Returns 0.0 if either argument is nil
  (IF (AND RADIUS CHORD)
    (WIKI-TAN (/ (WIKI-ASIN (/ CHORD RADIUS 2.0)) 2.0))
    0.0
  )
)

;;;  End geometry functions-----------------------------------------------------

;;;  GDD-DRAW3DLINE
(DEFUN
   GDD-DRAW3DLINE (PNT3D1 PNT3D3 BULGE / 2DPNTI	3DCURVEPNTS CENTERPNT CURVEERROR
		   DELTA DELTAI	I NUMSEGMENTS R	RISEI STARTANGLE STARTELEV
		  )
;;;  Draws a 3D POLYLINE for a digital terrain model.
;;;  If bulge isn't 0, draws a segmented 3D polyline to approximate an arc,
;;;  Splits arc into line segments based on given error.
;;;  Value of error is the maximum distance the true 2d arc
;;;  varies from a segment of the approximated 2d arc.
;;;  There are always a minimum of two segments in the approximated arc.
;;;  Approximated 2d arc touches true 2d arc at segment ends.
;;;  Returns entity name of line.
  (COND
    ((/= BULGE 0)
     ;; Calculate the number of segments for the approximated arc.
     ;; First we need to know the arc that goes through the endpoints.
     ;; We know that the radius for a segment = the radius for the true arc.
     ;; So we draw a sketch and find that,
     ;; r - error / r = cos (delta / 2). Or delta = 2 acos (1 - error/r).
     (SETQ
       CURVEERROR
	(ATOF (GDD-GETVAR "CURVEERROR"))
       R (GDD-SEGMENT-RADIUS PNT3D1 PNT3D3 BULGE)
       DELTAI
	(* 2 (GDD-ACOS (MAX 0 (- 1 (/ CURVEERROR R)))))
     )
     ;; Now we can find the minimum number of segments (at least 2)
     ;; that will yield less than the allowed error.
     (SETQ
       DELTA
	(GDD-SEGMENT-DELTA PNT3D1 PNT3D3 BULGE)
       NUMSEGMENTS
	(MAX 2 (1+ (FIX (ABS (/ DELTA DELTAI)))))
     )
     ;; Now adjust deltai to make an even number of segments of delta.
     (SETQ DELTAI (/ DELTA NUMSEGMENTS))
     ;; Get 2D center point and starting angle
     (SETQ
       CENTERPNT
	(GDD-SEGMENT-CENTER PNT3D1 PNT3D3 BULGE)
       STARTANGLE
	(ANGLE CENTERPNT (GDD-FLATTEN PNT3D1))
       STARTELEV
	(CADDR PNT3D1)
       RISEI
	(/ (- (CADDR PNT3D3) STARTELEV) NUMSEGMENTS)
     )
     ;;Now build the point list for the 3d pline.
     (SETQ
       I 0
       3DCURVEPNTS
	(LIST PNT3D1)
     )
     (WHILE (<= (SETQ I (1+ I)) NUMSEGMENTS)
       (SETQ
	 2DPNTI
	  (POLAR CENTERPNT (+ STARTANGLE (* I DELTAI)) R)
	 3DCURVEPNTS
	  (CONS
	    (LIST
	      (CAR 2DPNTI)
	      (CADR 2DPNTI)
	      (+ STARTELEV (* I RISEI))
	    )
	    3DCURVEPNTS
	  )
       )
     )
     (GDD-MAKE3DPOLY (REVERSE 3DCURVEPNTS))
    )
    ;; If not a curve, just connect points
    (T (GDD-MAKE3DPOLY (LIST PNT3D1 PNT3D3)))
  )
  (ENTLAST)
)


;;;  GDD-MAKE3dPOLY
(DEFUN
   GDD-MAKE3DPOLY (PNTLIST)
  (ENTMAKE
    (LIST
      '(0 . "POLYLINE")
      '(100 . "AcDbEntity")
      '(100 . "AcDb3dPolyline")
      '(70 . 8)
    )
  )
  (FOREACH
     PNT PNTLIST
    (ENTMAKE
      (LIST
	'(0 . "VERTEX")
	'(100 . "AcDb3dPolylineVertex")
	(CONS 10 PNT)
	'(70 . 32)
      )
    )
  )
  (ENTMAKE '((0 . "SEQEND")))
)


;;;  GDD-SLOPEDIR
(DEFUN
   GDD-SLOPEDIR	(INSPNT COORDS1 COORDS2 BULGE / CENPNT DELTA DOVER2 L R)
;;;Returns the direction for the connector slope.
  (COND
    ;;If a line,
    ((= BULGE 0)
     ;;If slope is downward
     (IF (MINUSP (GDD-RISE COORDS1 COORDS2))
       ;;point to 2
       (ANGLE COORDS1 COORDS2)
       ;;otherwise point to 1.
       (ANGLE COORDS2 COORDS1)
     )
    )
    ;;If an arc,
    (T
     ;;figure out the arc properties from the bulge value
     (SETQ CENPNT (GDD-SEGMENT-CENTER COORDS1 COORDS2 BULGE))
     ;;then use the sign (+/-) of the bulge and the rise
     ;;to get the sign of the arrow (if they're both positive, it's negative).
     ;;
     ;; Rise  Bulge  Dir
     ;;  +      +     -   Rising around a ccw curve, arrow points cw
     ;;  -      +     +   Falling around a ccw curve, arrow points ccw
     ;;  +      -     +   Rising around a cw curve, arrow points ccw
     ;;  -      -     -   Falling around a cw curve, arrow points cw
     (+	(ANGLE CENPNT INSPNT)
	(* (/ PI 2)
	   -1
	   (IF (MINUSP (GDD-RISE COORDS1 COORDS2))
	     -1
	     1
	   )
	   (IF (MINUSP BULGE)
	     -1
	     1
	   )
	)
     )
    )
  )
)

(DEFUN
   GDD-RIGHTSIDEUP (ANG / FLIPPINGANGLE TESTANGLE)
;;;Flips an angle if necessary for right-side upness of text.
  (SETQ
    FLIPPINGANGLE
     (/ 7.0 24.0)
    TESTANGLE
     (/ ANG (* 2.0 PI))
  )
  (COND
    ((OR (< FLIPPINGANGLE TESTANGLE (+ FLIPPINGANGLE 0.5))
	 (> (* -1 FLIPPINGANGLE) TESTANGLE (- -0.5 FLIPPINGANGLE))
     )
     (+ ANG PI)
    )
    (ANG)
  )
)
;;;  Misc functions ----------------------------------------------------------

(DEFUN GDD-ICAD-P () (OR (WCMATCH (GETVAR "acadver") "*i") *GDD-ICADMODE*))
					;*GDD-ICADMODE* is for testing in AutoCAD.

;;;  GDD-MAKELAYER sub-function defines and makes current a layer for another routine.
(DEFUN
   GDD-MAKELAYER (STRLAOPT / LAOPT LANAME LACOLR LALTYP LTFILE)
;;; Usage: (mklayr "'(\"laname\" \"lacolr\" \"laltyp\")")
;;; Use empty quotes for default color and linetype (eg. (mklay "'(\"AZ\" \"\" \"\")")
  ;; Convert string to layer list.
  (SETQ LAOPT (READ STRLAOPT))
  (COND
    ;;If in ICAD mode, do nothing because we are getting an error trying to invoke the layer command.
    ((GDD-ICAD-P))
    (T
     (SETQ
       LANAME
	(CAR LAOPT)
       LACOLR
	(CADR LAOPT)
       LALTYP
	(CADDR LAOPT)
       LTFILE "acad"
     )
     (IF (NOT (OR (= LALTYP "") (TBLSEARCH "LTYPE" LALTYP)))
       (PROGN (COMMAND "._linetype" "l" LALTYP "acad") (COMMAND))
     )
     (IF (NOT (OR (= LALTYP "") (TBLSEARCH "LTYPE" LALTYP)))
       (PROGN
	 (ALERT
	   (STRCAT
	     "AutoCAD could not find "
	     LALTYP
	     " linetype.\n\nUsing default linetype."
	   )
	 )
	 (SETQ LALTYP "")
       )
     )
     (COMMAND "._layer")
     (IF (NOT (TBLSEARCH "LAYER" LANAME))
       (COMMAND "m" LANAME)
       (COMMAND "t" LANAME "on" LANAME "u" LANAME "s" LANAME)
     )
     (IF (/= LACOLR "")
       (COMMAND "c" LACOLR "")
     )
     (IF (/= LALTYP "")
       (COMMAND "lt" LALTYP "")
     )
     (COMMAND "")
     LAOPT
    )
  )
)


;;;  GDD-SETUP
(DEFUN C:GDD-SETUP () (WHILE (GDD-SETUP NIL)))
(DEFUN
   GDD-SETUP (INPUT / CVAL)
;;;Displays prompt and gets user input to change setup values
  (COND
    ((NOT INPUT)
     (INITGET "AVerage Digits Curb Error Connector ADdition Slope")
     (SETQ
       INPUT
	(GETKWORD
	  (STRCAT
	    "\nAverage elevation="
	    (GDD-GETVAR "AVGELEV")
	    ", Elevation digits="
	    (GDD-GETVAR "DISPLAYDIGITS")
	    ", Curb height="
	    (GDD-GETVAR "CURBHEIGHT")
	    ", Curve error="
	    (GDD-GETVAR "CURVEERROR")
	    ", Elevation add="
	    (GDD-GETVAR "OBJECTADD")
	    ", Slope="
	    (GDD-GETVAR "OBJECTSLOPE")
	    "\nAverage project elevation/elevation Digits to show/Curb height/curve Error/Connector placement/Addition from object/Slope from object: "
	  )
	)
     )
    )
  )
  (COND
    ((= INPUT "AVerage")
     (GDD-SETFROMINPUT 'GETINT 'INT "Average project elevation" "AVGELEV")
    )
    ((= INPUT "Digits")
     (GDD-SETFROMINPUT
       'GETINT
       'INT
       "Digits left of decimal to display for automatic elevations"
       "DISPLAYDIGITS"
     )
    )
    ((= INPUT "Curb")
     (GDD-SETFROMINPUT
       'GETREAL
       'REAL
       "Curb height (elevation to add to first elevation for double elevation points)"
       "CURBHEIGHT"
     )
    )
    ((= INPUT "Error")
     (GDD-SETFROMINPUT
       'GETREAL
       'REAL
       "Maximum distance error to allow in segmenting 3d curves"
       "CURVEERROR"
     )
    )
    ((= INPUT "Connector")
     (GDD-SETFROMINPUT
       'GETINT
       'INT
       "Maximum times to prompt for manual connector placement on updates (0 for automatic always)"
       "CONNECTORUSERPLACEMAX"
     )
     (GDD-SETVAR "CONNECTORUSERPLACE" (GDD-GETVAR "CONNECTORUSERPLACEMAX"))
     (IF (= (GDD-GETVAR "CONNECTORUSERPLACE") "0")
       (MENUCMD "GGDD.ID_GDDCPTOG=")
       (MENUCMD "GGDD.ID_GDDCPTOG=!.")
     )
    )
    ((= INPUT "ADdition")
     (GDD-SETFROMINPUT
       'GETREAL
       'REAL
       "Elevation to add to selected objects (0 to turn off)"
       "OBJECTADD"
     )
    )
    ((= INPUT "Slope")
     (GDD-SETFROMINPUT
       'GETREAL
       'REAL
       "Slope to run up from selected objects (0 to turn off)"
       "OBJECTSLOPE"
     )
    )
    (INPUT)
  )
)
;;;  GDD-PROJINIT
;;;  Initializes values for project that are required.
;;;  This function would not be needed if an ini or the registry or setcfg were used.
(DEFUN
   GDD-PROJINIT	(/ DISPLAYDIGITSLIST ELEVLIST I SS1)
  (SETQ
    SS1	(SSGET "X" '((0 . "INSERT") (2 . "GDDPOINT*")))
    I	-1
  )
  (COND
    (SS1
     (WHILE (SETQ ENI (SSNAME SS1 (SETQ I (1+ I))))
       (SETQ
	 ELEVLIST
	  (CONS (RTOS (CADDDR (ASSOC 10 (ENTGET ENI))) 2 0) ELEVLIST)
       )
       (COND
	 ((< I 10)
	  (SETQ
	    DISPLAYDIGITSLIST
	     (CONS
	       (ITOA
		 (STRLEN
		   (ITOA
		     (ATOI
		       (CDR
			 (ASSOC
			   "ELEV"
			   (GDD-READBLOCK ENI '(("ELEV")))
			 )
		       )
		     )
		   )
		 )
	       )
	       DISPLAYDIGITSLIST
	     )
	  )
	 )
       )
     )
     (GDD-SETVAR
       "AVGELEV"
       (NTH (/ (LENGTH ELEVLIST) 2) (ACAD_STRLSORT ELEVLIST))
     )
     (GDD-SETVAR
       "DISPLAYDIGITS"
       (NTH (/ (LENGTH DISPLAYDIGITSLIST) 2) (ACAD_STRLSORT DISPLAYDIGITSLIST))
     )
    )
    (T (LIST (GDD-SETUP "AVerage") (GDD-SETUP "Digits")))
  )
)
;;;  GDD-SETVAR
(DEFUN
   GDD-SETVAR (KEY STRVALUE / EXIST)
;;;Sets a semi-permanent default value for GDD use.
;;;Currently uses an AutoLISP session variable.
;;;Could be modified to use an attributed block,
;;;an ini file, or the Windows registry.
;;;Returns STRVALUE
  (COND
    ;;If default is already in list, replace it.
    ((SETQ EXIST (ASSOC KEY *GDD-DEFAULTS*))
     (SETQ *GDD-DEFAULTS* (SUBST (CONS KEY STRVALUE) EXIST *GDD-DEFAULTS*))
    )
    ;;Otherwise, add it to list.
    (T (SETQ *GDD-DEFAULTS* (CONS (CONS KEY STRVALUE) *GDD-DEFAULTS*)))
  )
  STRVALUE
)

;;;  GDD-GETVAR
(DEFUN
   GDD-GETVAR (KEY / ELEV NESTED VALUE)
;;;Gets a semi-permanent default value for GDD use.
;;;Currently uses an AutoLISP session variable.
;;;Could be modified to use an attributed block,
;;;an ini file, or the Windows registry.
  ;;If the requested variable is a drawing-specific mandatory setting
  ;;(average project elevation and display digits)
  ;;and hasn't been initialized yet,
  ;;initialize it from the drawing or the user.
  (COND
    ((AND
       (MEMBER KEY '("AVGELEV" "DISPLAYDIGITS"))
       (= NIL (CDR (ASSOC "AVGELEV" *GDD-DEFAULTS*)))
     )
     (GDD-SETVAR "AVGELEV" "0")
     (GDD-SETVAR "DISPLAYDIGITS" "2")
     (GDD-PROJINIT)
    )
  )
  ;;If application defaults haven't been loaded, load them,
  ;;All the values below are stored as strings for possible future
  ;;registry and file simplicity
  (COND
    ;;First try to get from defaults in drawing.
    ((CDR (ASSOC KEY *GDD-DEFAULTS*)))
    ;;Second try to get from hard-coded application defaults.
    ((GDD-SETVAR
       KEY
       (CDR
	 (ASSOC
	   KEY
	   (LIST
	     (CONS "CURBHEIGHT" "0.50")
	     (CONS "CURVEERROR" "1.0")
	     ;;No application default available.  Have to get from drawing or user.
	     (CONS "AVGELEV" NIL)
	     ;;No application default available.  Have to get from drawing or user.
	     (CONS "DISPLAYDIGITS" NIL)
	     (CONS "DESCRIPTION1" "P")
	     (CONS "DESCRIPTION2" "TC")
	     (CONS "CONNECTORUSERPLACE" "2") ;2 to turn on 2 prompt max.
	     (CONS "CONNECTORUSERPLACEMAX" "2")
	     (CONS "CONNECTPREFIX" "S=")
	     (CONS "CONNECTSUFFIX" "%")
	     (CONS "CONNECTFACTOR" "100")
	     (CONS "CONNECTPREC" "2")
	     (CONS "LYRPOINT" "( \"GDD-POINT\" \"4\" \"\")")
	     (CONS "LYRCONNECTSLOPE" "(\"GDD-CONNECTSLOPE\" \"4\" \"\")")
	     (CONS "LYRCONNECTRISE" "(\"GDD-CONNECTRISE\" \"2\" \"\")")
	     (CONS "LYRARROW" "(\"GDD-ARROW\" \"2\" \"\")")
	     (CONS "LYR3DLINE" "(\"GDD-3DLINE\" \"5\" \"\")")
	     (CONS "OBJECTADD" "0")
	     (CONS "OBJECTSLOPE" "0.02")
	     ;;Point reference type can be "Object" select, "Read" from text, or "Prompt"
	     (CONS "POINTREFERENCETYPE" "Prompt")
	     (CONS "POINTDESCRIPTIONPROMPT" "On")
	     ;;Enable Z coordinate on move point
	     (CONS "POINTMOVEZ" "Off")
	   )
	 )
       )
     )
    )
    ;;If all else fails, declare a fatal error.
    (T
     (ALERT
       (PRINC
	 (STRCAT "\nError: The requested key, " KEY ", is not known to GDD.")
       )
     )
    )
  )
)

(DEFUN
   GDD-SETFROMINPUT (INPUTFUNC INPUTTYPE PRMPT VAR)
  (GDD-SETVAR VAR (GDD-GETINPUT INPUTFUNC INPUTTYPE PRMPT VAR))
)

(DEFUN
   GDD-GETINPUT	(INPUTFUNC INPUTTYPE PRMPT VAR)
  (SETQ CVAL (GDD-GETVAR VAR))
  (SETQ INPUT (APPLY INPUTFUNC (LIST (STRCAT "\n" PRMPT " <" CVAL ">: "))))
  (COND
    ((OR (AND (= INPUTFUNC 'GETSTRING) (= INPUT "")) (NOT INPUT)) CVAL)
    (T
     (GDD-SETVAR
       VAR
       (COND
	 ((= INPUTTYPE 'INT) (ITOA INPUT))
	 ((= INPUTTYPE 'REAL) (RTOS INPUT 2 6))
	 ((= INPUTTYPE 'STR) INPUT)
       )
     )
    )
  )
)

;;;  GDD-GETREFERENCE
(DEFUN
   GDD-GETREFERENCE (ELEVPROMPT / INPUT NESTED VAL)
;;;  Gets a full elevation real or an object from user
  (WHILE (NOT VAL)
    (SETQ
      VAL
       ;;If there is a running prompt preference, use it.
       (COND
	 ((= (SETQ VAL (GDD-GETVAR "POINTREFERENCETYPE")) "Object") VAL)
	 ((= VAL "Read") VAL)
	 (T
	  (INITGET "Setup Object Read")
	  (GETREAL
	    (STRCAT
	      "\nEnter "
	      ELEVPROMPT
	      " elevation or [Setup/Object/Read text] <Object>: "
	    )
	  )
	 )
       )
    )
    (COND
      ;;If a request for setup, set to nil and do setup.
      ((= VAL "Setup") (SETQ VAL NIL) (GDD-SETUP NIL))
      ;;If a request to read text, get string.
      ((= VAL "Read")
       (SETQ VAL (CAR (NENTSEL "\nSelect elevation text: ")))
       (IF VAL
	 (SETQ VAL (CADR (GDD-EXTRACTX (CDR (ASSOC 1 (ENTGET VAL))) "*" 0)))
       )
       ;;Convert read text to full length elevation real.
       (IF VAL
	 (SETQ VAL (GDD-FULLELEV VAL))
       )
      )
      ;;If a request for object select, get object
      ((OR (= VAL "Object") (NOT VAL))
       (SETQ VAL (CAR (ENTSEL "\nSelect reference object: ")))
      )
      ;;Else, convert typed text string to full length elevation real.
      ((SETQ VAL (GDD-FULLELEV (RTOS VAL 2))))
    )
  )
)

;;;  GDD-GETDESTINATION
(DEFUN
   GDD-GETDESTINATION (INPUTREF / PNTARC2 VAL)
;;;  Gets the insertion point and any connector arc information
;;;  for a point to be inserted
;;;  Returns a list or a double list (list with two list elements).
;;;  Either a point if no arc, or two points if an arc.
  (COND
    ((= (TYPE INPUTREF) 'ENAME)
     (WHILE (NOT VAL)
       (INITGET "Arc")
       (SETQ VAL (GETPOINT "\nXY location for point or [Arc] <Arc>: "))
       (COND
	 ((OR (NOT VAL) (= VAL "Arc"))
	  (SETQ VAL NIL)
	  (SETQ PNTARC2 (GETPOINT "\nSecond point for arc: "))
	 )
       )
     )
     (IF PNTARC2
       (LIST PNTARC2 VAL)
       VAL
     )
    )
    (T (GETPOINT "\nXY location for point: "))
  )
)

;;;  GDD-FULLELEV
(DEFUN
   GDD-FULLELEV	(SHORTELEV / 10^SHORTLENGTH FULLELEV SHORTLENGTH TRUNCTYPELEV
		 TYPELEV ZEROPAD
		)
;;;Returns complete elevation real number based on entered elevation string
;;;and average elevation.
;;;Doesn't do anything if elevation is a real number because you can't pad initial zeros (like 00.20) with a real number
  ;;If shortelev is a 'STR, convert to a full length 'REAL.  Otherwise, use it as is.
  (COND
    ((= (TYPE SHORTELEV) 'STR)
     (IF (NOT (DISTOF SHORTELEV))
       (ALERT (PRINC (STRCAT "\nInvalid elevation:\n\n" SHORTELEV)))
     )
     (SETQ ZEROPAD 1)
     (WHILE (= (SUBSTR SHORTELEV 1 1) "0")
       (SETQ
	 ZEROPAD
	  (1+ ZEROPAD)
	 SHORTELEV
	  (SUBSTR SHORTELEV 2)
       )
     )
     (SETQ
       SHORTELEV
	(ATOF SHORTELEV)
       SHORTLENGTH
	(IF (= SHORTELEV 0)
	  1
	  (FIX (+ ZEROPAD (/ (LOG SHORTELEV) (LOG 10))))
	)
       10^SHORTLENGTH
	(FIX (EXP (* (LOG 10) SHORTLENGTH)))
       TYPELEV
	(ATOI (GDD-GETVAR "AVGELEV"))
       TRUNCTYPELEV
	(* 10^SHORTLENGTH (/ TYPELEV 10^SHORTLENGTH))
       FULLELEV
	(+ SHORTELEV TRUNCTYPELEV)
     )
     (IF (> (- FULLELEV TYPELEV) (/ 10^SHORTLENGTH 2))
       (- FULLELEV 10^SHORTLENGTH)
       FULLELEV
     )
    )
    (T
     (ALERT
       "GDD-FULLELEV function can only convert strings\nReturning original value."
     )
     SHORTELEV
    )
  )
)

;;;  GDD-SHORTELEV
(DEFUN
   GDD-SHORTELEV
;;;Returns short elevation string based on full elevation string
;;;and "DISPLAYDIGITS".
		 (FULLELEV / CHOPLENGTH)
  ;;If fullelev is a 'STR, convert to a short length 'REAL.  Otherwise, use it as is.
  (COND
    ((= (TYPE FULLELEV) 'STR)
     (IF (NOT (DISTOF FULLELEV))
       (ALERT (PRINC (STRCAT "\nInvalid elevation:\n\n" FULLELEV)))
     )
     (SETQ
       CHOPLENGTH
	(- (STRLEN (ITOA (FIX (ATOF FULLELEV))))
	   (ATOI (GDD-GETVAR "DISPLAYDIGITS"))
	)
     )
     (COND
       ((< CHOPLENGTH 0)
	(REPEAT (* -1 CHOPLENGTH) (SETQ FULLELEV (STRCAT "0" FULLELEV)))
	FULLELEV
       )
       (T (SUBSTR FULLELEV (1+ CHOPLENGTH)))
     )
    )
  )
)




;;;  GDD-GETSLOPE
(DEFUN
   GDD-GETSLOPE	(/ NESTED VALUE)
;;;Gets a slope string from user or connector object.
  (WHILE (NOT VALUE)
    (SETQ VALUE (GETSTRING "\nSlope to new point: "))
    (COND
      ;;If user entered something,
      ((/= VALUE "")
       ;;Then if not a valid number
       (IF (NOT (SETQ VALUE (DISTOF VALUE)))
	 ;;Set nil to try again
	 (SETQ VALUE NIL)
	 ;;But if a valid number, return it.
	 VALUE
       )
      )
      ;;If no value entry, prompt for object selection
      (T
       (IF (SETQ VALUE (CAR (ENTSEL)))
	 (SETQ VALUE (RTOS (CADDDR (ASSOC 10 (ENTGET VALUE))) 2))
       )
      )
    )
  )
  VALUE
)

;;;  GDD-READBLOCK
(DEFUN
   GDD-READBLOCK (EN VALUES / AT AV EG ET I J)
;;;Reads the given values from attributes in the given block.
;;;Values are in an association list '((tag))
;;;Block is given as a entity name
;;;Returns list of tags and values '((tag . value))
  (SETQ
    I (LENGTH VALUES)
    J 0
  )
  (WHILE (AND
	   (/= J I)
	   (SETQ EN (ENTNEXT EN))
	   (/= "SEQEND" (SETQ ET (CDR (ASSOC 0 (SETQ EG (ENTGET EN)))))) ;_ end of /=
	 ) ;_ end of and
    (COND
      ((= ET "ATTRIB")
       (SETQ
	 AT (CDR (ASSOC 2 EG))
	 AV (CDR (ASSOC 1 EG))
       ) ;_ end of setq
       (COND
	 ((ASSOC AT VALUES)
	  (SETQ
	    VALUES
	     (SUBST (CONS AT AV) (ASSOC AT VALUES) VALUES) ;_ end of SUBST
	    J (1+ J)
	  )
	 )
       ) ;_ end of cond
      )
    ) ;_ end of cond
  ) ;_ end of while
  VALUES
)

;;;  GDD-WRITEBLOCK
(DEFUN
   GDD-WRITEBLOCK (EN VALUES / AT AV EG ET)
;;;Writes the given values to the given block.
;;;Values are in an association list '((tag . value))
;;;Block is given as a entity name
;;;No meaningful return value.  Could return block entity name or list of attributes.
  ;;Fill in attributes
  (WHILE (AND
	   (SETQ EN (ENTNEXT EN))
	   (/= "SEQEND" (SETQ ET (CDR (ASSOC 0 (SETQ EG (ENTGET EN)))))) ;_ end of /=
	 ) ;_ end of and
    (COND
      ((= ET "ATTRIB")
       (SETQ
	 AT (CDR (ASSOC 2 EG))
	 AV (CDR (ASSOC 1 EG))
       ) ;_ end of setq
       (COND
	 ((ASSOC AT VALUES)
	  (ENTMOD
	    (SUBST (CONS 1 (CDR (ASSOC AT VALUES))) (ASSOC 1 EG) EG) ;_ end of SUBST
	  ) ;_ end of ENTMOD
	 )
       ) ;_ end of cond
       (ENTUPD EN)
      )
    ) ;_ end of cond
  ) ;_ end of while
)

;;;  Extractx used to extract numerical info from a text string with  extended  options.
(DEFUN
   GDD-EXTRACTX	(S WC OPT / C DONE I PRE PREI NUMBER SUF SUFI)
;;;  Copyright 2007 Thomas Gail Haws
;;; Licensed to the public as Free Software under the terms of the GNU General Public License ver. 3 or later
;;; Type 0 tries to match the wild cards with text preceding a number.
;;; Type 1 tries to match the wild cards with text following a number
  (SETQ
    I (IF (= OPT 0)
	0
	(1+ (STRLEN S))
      )
    PRE	""
    NUMBER ""
    SUF	""
  )
  (REPEAT (STRLEN S)
    (SETQ
      C	   (SUBSTR
	     S
	     (SETQ
	       I (IF (= OPT 0)
		   (1+ I)
		   (1- I)
		 )
	     )
	     1
	   )
      PREI (SUBSTR S 1 (1- I))
      SUFI (SUBSTR S (1+ I))
    )
    (COND
      ((NOT
	 (WCMATCH
	   (IF (= OPT 0)
	     PREI
	     SUFI
	   )
	   WC
	 )
       )
       (IF (= OPT 0)
	 (SETQ PRE (STRCAT PRE C))
	 (SETQ SUF (STRCAT C SUF))
       )
      )
      ((AND (WCMATCH C "#") (NOT DONE))
       (SETQ
	 NUMBER
	  (IF (= OPT 0)
	    (STRCAT NUMBER C)
	    (STRCAT C NUMBER)
	  )
       )
      )
      ((AND
	 (EQ C "-")
	 (= NUMBER "")
	 (NOT DONE)
	 (WCMATCH (SUBSTR S (1+ I) 1) "#")
       )
       (SETQ
	 NUMBER
	  (IF (= OPT 0)
	    (STRCAT NUMBER C)
	    (STRCAT C NUMBER)
	  )
       )
      )
      ((AND (EQ C ".") (NOT DONE) (WCMATCH (SUBSTR S (1+ I) 1) "#"))
       (SETQ
	 NUMBER
	  (IF (= OPT 0)
	    (STRCAT NUMBER C)
	    (STRCAT C NUMBER)
	  )
       )
      )
      ((EQ NUMBER "")
       (IF (= OPT 0)
	 (SETQ PRE (STRCAT PRE C))
	 (SETQ SUF (STRCAT C SUF))
       )
      )
      (T
       (SETQ DONE T)
       (IF (= OPT 0)
	 (SETQ SUF (STRCAT SUF C))
	 (SETQ PRE (STRCAT C PRE))
       )
      )
    )
  )
  (IF (NOT (ZEROP (STRLEN NUMBER)))
    (LIST PRE NUMBER SUF)
  )
)

;;;  Housekeeping functions-----------------------------------------------------

;;
;; GDD-icad-P
(DEFUN
   GDD-ICAD-P ()
  ;;
  ;;Tests whether intellicad behavior is current.
  (OR (WCMATCH (GETVAR "acadver") "*i") *GDD-ICADMODE*)
)

;;;  Trig functions not included with AutoLISP
(DEFUN GDD-ACOS (X) (ATAN (SQRT (- 1 (* X X))) X))

;| Start AutoLISP comment mode to wiki transclude sub functions
;;;  WIKI-ASIN
; End AutoLISP comment mode if on |;
(DEFUN WIKI-ASIN (X)
;| Returns the arc sine of a number
   Edit the source code for this function at
  asin (AutoLISP function)
|;
 (ATAN X (SQRT (- 1 (* X X))))
)

;;;  WIKI-TAN
; End comment mode if on |;
(DEFUN WIKI-TAN (X)
;| Returns the tangent of an angle
   Edit the source code for this function at
  tan (AutoLISP function)
|;
 (/ (SIN X) (COS X))
)

;| WIKI-3PTTOBULGE
Returns the bulge of an arc defined by three points, PNT1, PNT2, and PNT3
   If point 2 is nil, returns 0.
   Edit the source code for this function at
  3pttobulge (AutoLISP function)
   External function references:
   WIKI-ASIN
   WIKI-TAN

Theory:
                 /\
                /  \
               /    \
              /      \
             / delta  \
            /          \
           /            R
          /              \
         /                \
        /                  \
       /                    \
      /                      \
     /       __chord___ ----- 1
    3 ------      |          *
       .    ANG2   B    _.*
           - 2 - ._|..-



Bulge = 2*B/chord
Bulge = tan(delta/4)
Theory (in classic triangle geometry terms):
 We want to find the radius, R.
 Points 1, 2, and 3 form a triangle with sides 1, 2, and 3 opposite them.
 A unique circle passes through the three points.
 Sides 1, 2, and 3 are all chords of the circle.
 Side 2 (opposite point 2) is the chord of this segment of the circle.

 It happens to be true that angle 2 doubled plus delta equals 360 or 2pi.
 This is intuitive when point 2 is at the midpoint of the circle segment.
 Consider how angle 2 acts in the following cases:
  Delta   Angle 2
    0       180
   90       135
  180        90
  270        45
  360         0

 But it is also true when point 2 is not at the midpoint.
 Therefore delta = 2*pi - 2*ang2 = 2*(pi-ang2) = 2*(ang1 + ang3)
 and delta/2=pi-ang2                                                           (equation 1)

 A line from the center of the circle is a perpendicular bisector of any of the three lines
 Therefore (side2/2)/R=sin(delta/2).                                           (equation 2)
 We'd like to get R just in terms of side2 and ang2.  Luckily we have this trig identity,
  sin(pi-theta)=sin(theta),                                                    (equation 3)
 so we can say from equations 1 and 3 that sin(delta/2)=sin(pi-ang2)=sin(ang2) (equation 4)
 and from equations 2 and 4 that (side2/2)/R=sin(ang2).                        (equation 5)
 Solving for R we get R=side2/(2*sin(ang2)).                                   (equation 6)
 That gives us R in terms of things we know.
 In fact, from the law of sines (a/sin(A)=b/sin(B)=c/sin(C)), since 2R=side2/sin(ang2),
 in geometry triangle terms (where "a" is a triangle side and "A" is its opposite angle),
 R=a/(2*sin(A)) for any of the three points/angles/opposite sides
|;
(DEFUN
   WIKI-3PTTOBULGE (PNT1 PNT2 PNT3 / ANG1 ANG2 ANG3 BULGE CHORD DELTA DELTA1 R)
  (COND
    ((NOT PNT2) 0)
    (T
     (SETQ
       CHORD
        (DISTANCE PNT1 PNT3)
       ANG2
        (- (ANGLE PNT2 PNT1) (ANGLE PNT2 PNT3))
       ;;We use the theory above to write an expression for R
       ;;using chord and ang2
       ;;Sin of ang2 (and thus R) will be negative if the arc is clockwise.
       R
        (/ CHORD (* 2 (SIN ANG2)))
       DELTA1
        (* 2 (WIKI-ASIN (/ CHORD (* 2 R))))
       ANG1
        (ABS (- (ANGLE PNT1 PNT3) (ANGLE PNT1 PNT2)))
       ANG1
        (ABS
          (IF (> ANG1 PI)
            (- ANG1 (* 2 PI))
            ANG1
          )
        )
       ANG3
        (ABS (- (ANGLE PNT3 PNT1) (ANGLE PNT3 PNT2)))
       ANG3
        (ABS
          (IF (> ANG3 PI)
            (- ANG3 (* 2 PI))
            ANG3
          )
        )
       DELTA
        (* 2 (+ ANG1 ANG3))
       BULGE
        (* (IF (MINUSP R)
             -1
             1
           )
           (WIKI-TAN (/ DELTA 4.0))
        )
     )
    )
  )
)
; End AutoLISP comment mode if on |;

;;;  Initialize the menu items to reflect defaults.
(GDD-MENUINIT)
 ;|«Visual LISP© Format Options»
(80 2 40 2 nil "end of " 80 2 2 2 1 T nil nil nil)
;*** DO NOT add text below the comment! ***|;

Ad blocker interference detected!


Wikia is a free-to-use site that makes money from advertising. We have a modified experience for viewers using ad blockers

Wikia is not accessible if you’ve made further modifications. Remove the custom ad blocker rule(s) and the page will load as expected.
